Camera Installation

What mounting angle best captures PIR motion?

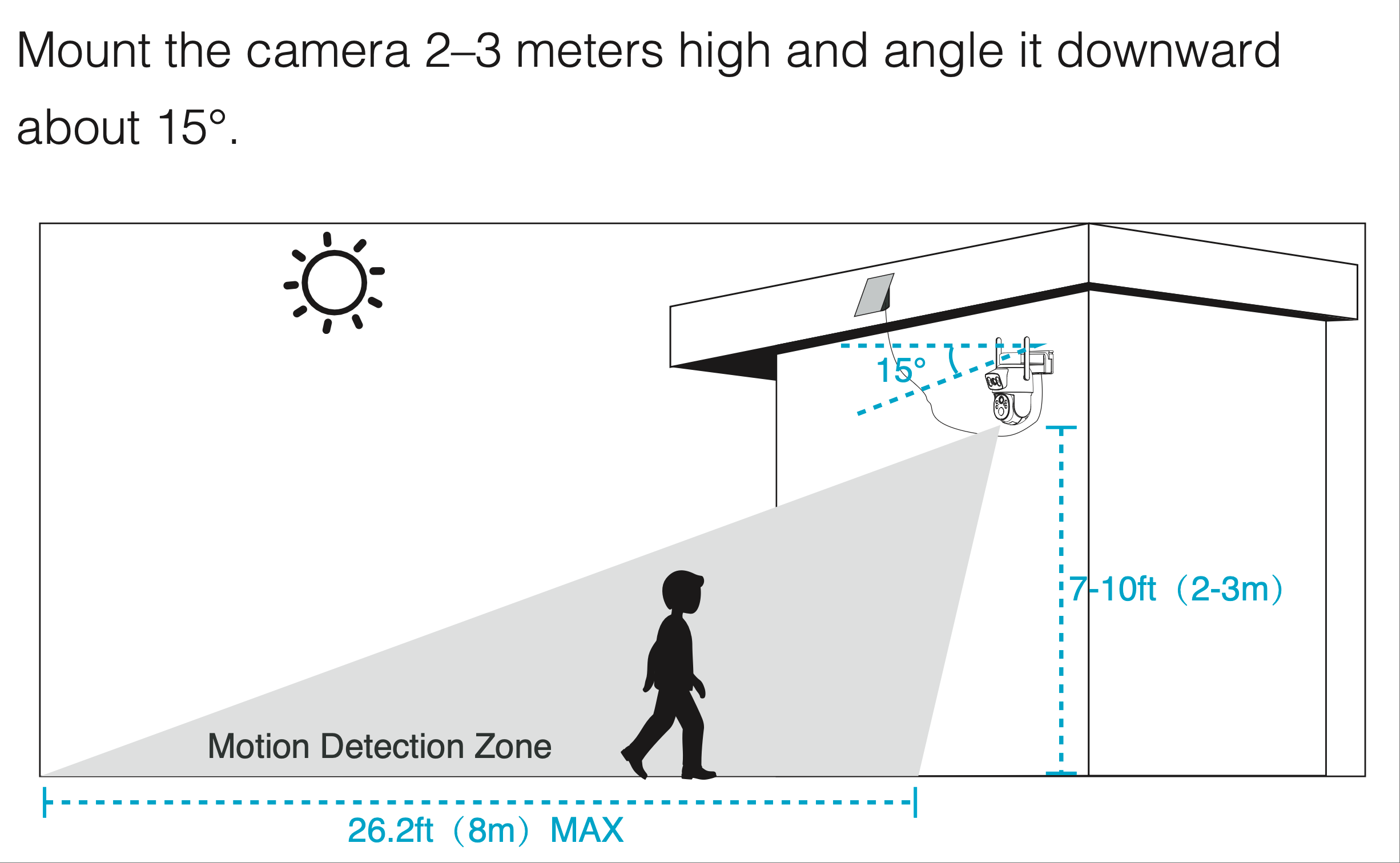

1. Mounting height: Install at 2–3 meters (7–10 ft).

2. Detection distance: PIR detects within 2–10 meters (up to 33 ft).

3. Tilt angle: Adjust 30°–60° downward.

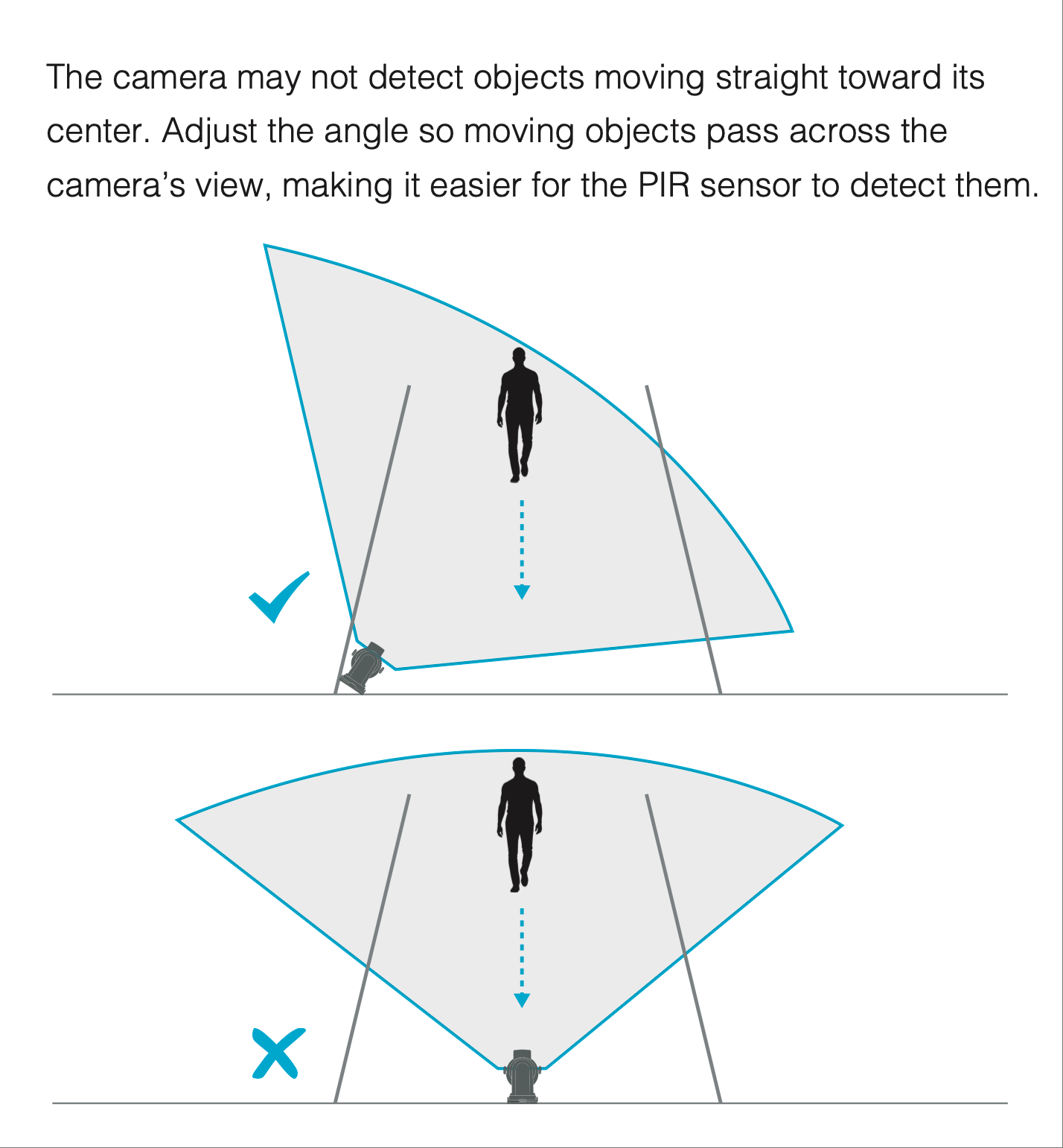

4. Aim across expected movement instead of head-on.

5. Avoid direct sunlight, reflective surfaces, or HVAC(Heating, Ventilation, and Air Conditioning) exhausts.

How should I install the solar panel?

Make sure the panel is placed where it receives direct sunlight. As long as sunlight can shine on it, it will work properly.

How do I install the base/mount?

1. Mark holes, drill, and insert anchors if needed.

2. Secure the bracket with screws.

3. Attach the camera and adjust angle.

4. Tighten all knobs to ensure stability.
